• Function Softens, conditions and filters your water to reduce minerals and contaminants.

• Performance Main valve is self-cleaning for maximum performance and long life. High flow rate assures steady, plentiful supply of conditioned water without worry of losing pressure. Powerful, self-lubricating 75-inch-per-pound motor drives unit.

• Economy Powered by an energy-efficient, low-voltage 24-volt electrical system.

• Fail-Safe Features Exclusive brine valve float system reduces chance of overflow; automatic bypass during regeneration means you always have water; fail-safe tank-within-tank construction.

• Reliability Carries limited lifetime warranty

How an Amazon water conditioning system works:

Step 1. Downflow Conditioning:
Untreated water flows through the filter media where hardness-causing minerals and iron are removed.

Step 2. Upflow Backwash:
Resin is “fluffed” to separate solids from the media.

Step 3. Downflow Brining:
System injects the exact quantity of brine made from filtered water needed for full-strength regeneration of the system.

Step 4. Slow Downflow Brine Rinse:
Slow rinsing of the brine through the filter media provides deep rinsing action to make sure all salt is removed from the media bed.

Step 5. Fast Downflow Rinse:
Fast downflow rinse repacks the medium, assuring maximum resin efficiency and removing any salt residue and any remaining traces of rust and iron.

Step 6. Treated Brine Makeup Refill:
A precise, preset quantity of filtered water is used to make a cleaner brine solution for regeneration; other brands use raw, hard water to clean the media bed.

---

Apollo systems are available with various features to fit your needs. Ask your RainSoft dealer to recommend the Apollo system that’s right for you:
• Apollo Gold
• Apollo Silver
The Apollo system is a compact, self-contained whole-house system that conditions and polishes your water—all in one space-saving cabinet. Available with a smart-feature microprocessor controller that handles thousands of

computations per second and responds in real time to the way your family actually uses water. Also available with a highly reliable, easy-to-set electronic timer.
Function: Softens, conditions and filters your water to reduce minerals and contaminants.
Performance: Main valve is self-cleaning for maximum performance and long life. High flow rate assures steady, plentiful supply of conditioned water without worry of losing pressure. Powerful, self-lubricating 75-inch-per-pound motor drives unit.
Economy: Powered by an energy-efficient, low-voltage 24-volt electrical system.
Convenience: Large brine tank means fewer refills.
Fail-Safe Features: Exclusive brine valve float system reduces chance of overflow. Fail-safe tank-within-tank construction.
Reliability: Carries limited lifetime warranty.

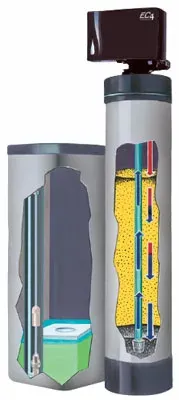

How the Apollo system works:

Step 1:
Water enters RainSoft’s multi-cycle control valve and flows down through the resin tank.

Step 2:
The water is filtered and softened as it passes through the special “ion exchange” resin. Specific unwanted foreign substances are ionically retained in and on the resin. The optional charcoal bed further polishes and clarifies the water.

Step 3:
Once completely conditioned, the water exits the resin tank through the riser pipe and out the control valve, ready for use in your home or business.

Step 4:
Apollo system models regenerate at metered intervals. The retained foreign substances are flushed out of the system and down the drain. The unit then prepares itself for the next conditioning cycle

---

Hydrefiner Drinking Water Systems come in a choice of models to fit your needs. Ask your RainSoft dealer to recommend the Hydrefiner system that’s right for you.

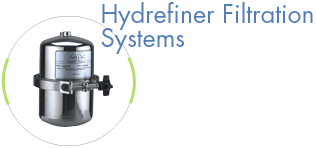

Hydrefiner Drinking Water System
A compact, economical drinking water system that tucks neatly under your sink and dispenses a constant supply of purely delicious water through your RainSoft faucet.
• Function Provides a dependable source of drinking water in the home.

• Performance Utilizes a highly compressed carbon block filter made of selected activated carbons to reduce chlorine tastes and odors.

• Convenience Installs conveniently under sink.

• Economy Produces up to 830* gallons of drinking water before cartridge replacement is needed.

• Reliability Unit is built to industry standards and carries a limited lifetime warranty.
Ask your local RainSoft dealer for a Performance Data Sheet for additional information regarding specific claims.
*830 gallons with Filtergard II faucet. 500 gallons without faucet.

How the P-12 Hydrefiner works:

Step 1:
Cold water enters the system.

Step 2:
Water is forced through a tightly compressed activated carbon block filter that has a porosity of only .4 microns

Step 3:
Unwanted substances are trapped and filtered out.

Step 4:
Water leaves the filter and flows through the system’s faucet, providing you with an abundant supply of crystal clear, delicious water for both drinking and cooking.

---

Ultrefiner Reverse Osmosis Filtration Systems are available in a range of models to fit your needs. Ask your RainSoft dealer to recommend the Ultrefiner system that’s right for you.
Ultrefiner Reverse Osmosis Drinking Water Filtration System
RainSoft’s premier drinking water filtration system delivers generous quantities of delicious “bottled water quality” water to you and your family.
• Function Provides a dependable source of very low sodium “ingredient quality” water for drinking and cooking.

• Performance Filters out extremely small particles that can slip through less sophisticated systems. The choice of prefilters and postfilters take care of almost any water concern.

• Convenience Installs conveniently under your sink.

• Reliability Unit is built to industry standards and carries a limited lifetime warranty.

How an Ultrefiner Reverse Osmosis Drinking Water Filtration System works:

Step 1:
Water from your inlet valve enters the system.

Step 2:
Water is forced through the prefilter cartridge that removes particles and polishes the water prior to entering the reverse osmosis membrane.

Step 3:
Water then enters the reverse osmosis cartridge where it is filtered through a spiral-wound, semipermeable membrane.

Step 4:
The resulting highly filtered reverse osmosis water enters a storage tank with a butyl bladder. The tank holds the reverse osmosis water on one side of the bladder and air on the other.

Step 5:
Your reverse osmosis water is finally filtered through the system postfilter and dispensed through a dedicated drinking water faucet.
